A192M ASTM A192 Seamless Steel Tubes For Water Oil Tempered 0.8mm - 15mm Thick
The seamless steel pipe is made of perforated whole round steel, and the steel pipe without weld seam on the surface is called seamless steel pipe.
| Product Name | Seamless Carbon Steel Boiler Tubes For High-Pressure Service. |
| Steel Grade | Grade A192 |
| Standard | ASTM A192, A192M |
| Out Dimensions | 12.7mm – 114.3mm |
| Wall Thickness | 0.8mm - 15mm |
| Length | Fixed(6m,9m,12,24m) or normal length(5-12m) |
| Packing | Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection |
| Inspection and Test: | Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test. |
| Surface treatment | Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting |
| Mark | As requested |
| Delivery Condition | Annealed, Normalized, Normalized and Tempered |
Chemical composition
Product | Ttem | Grade | Chemical composition |
C | Si | Mn | P.≤ | S.≤ | Cr | Ni | others |
Carbon steel | 1 | 10 | 0.07/0.13 | 0.17/0.37 | 0.35/0.65 | 0.03 | 0.03 | ≤0.15 | ≤0.30 | Cu≤0.25 |
2 | 20 | 0.17/0.23 | 0.17/0.37 | 0.35/0.65 | 0.03 | 0.03 | ≤0.25 | ≤0.30 | Cu≤0.25 |
3 | A179 | 0.06/0.18 | - | 0.27/0.63 | 0.03 | 0.03 | - | - | - |
4 | A192 | 0.06/0.18 | ≤0.25 | 0.27/0.63 | 0.03 | 0.03 | - | - | - |
Mechanical properties
Item | Mark | Tensile property | Hardness |
Extension strength Rm Mpa | Lower Yield strength Rel or Rp0.2 MPa | lower Yield strength ReL or Rp0.2 Mpa |
Thickness | Thickness |
≤16 | >16 | <5.1 | ≥5.1 |
≥ | ≤ |
1 | 10 | 335~475 | 205 | 195 | 24 | - | - |
2 | 20 | 410~530 | 245 | 235 | 20 | - | - |
3 | A179 | ≥325 | 180 | 35 | - | - |
4 | A192 | ≥325 | 180 | 35 | 77HRB | 137HB |
Applications

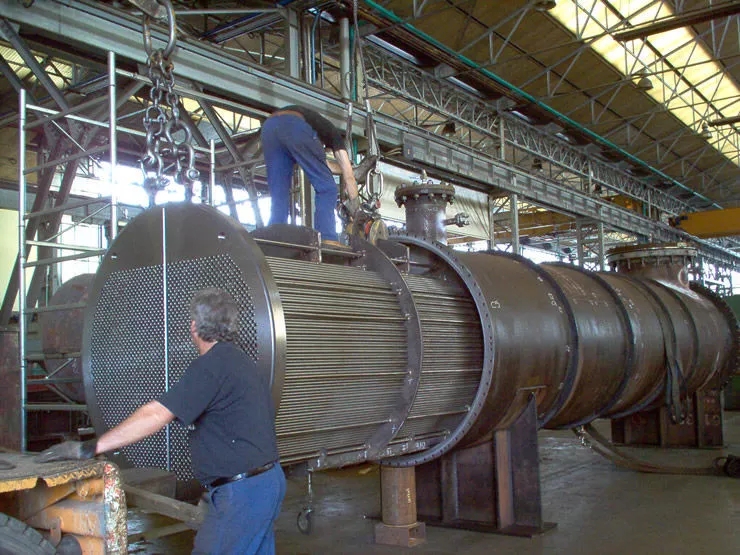

1. For evaporator, heat exchangers, condensers, heat transfer equipment and similar pipes.
2. Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
3. Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
4. The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
5. Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Product Photo
Quality Control
Main Certificates
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Wuxi Sylaith Special Steel Co.,Ltd is a manufacturer of steel pipe and tube since 2010. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Seamless Stainless Steel Pipe / Tube, Seamless Carbon Stainless Steel Pipe /Tube,Galvanized Steel Tube witn any Shape and Welded pipes can also be available
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4. CAN YOU PRODUCE THE PRODUCTS ACCORDING TO MY OWN DRAWINGS?
A4: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q5: HOW TO VISIT YOUR FACTORY?
A5: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
